myCobot Pro Air Parallel Grippers & Air Compressor For myCobot 320, myCobot Pro 630
Materials:with Air Compressor
Free Shipping! If you want to know more product information such as edu version, please contact us directly.

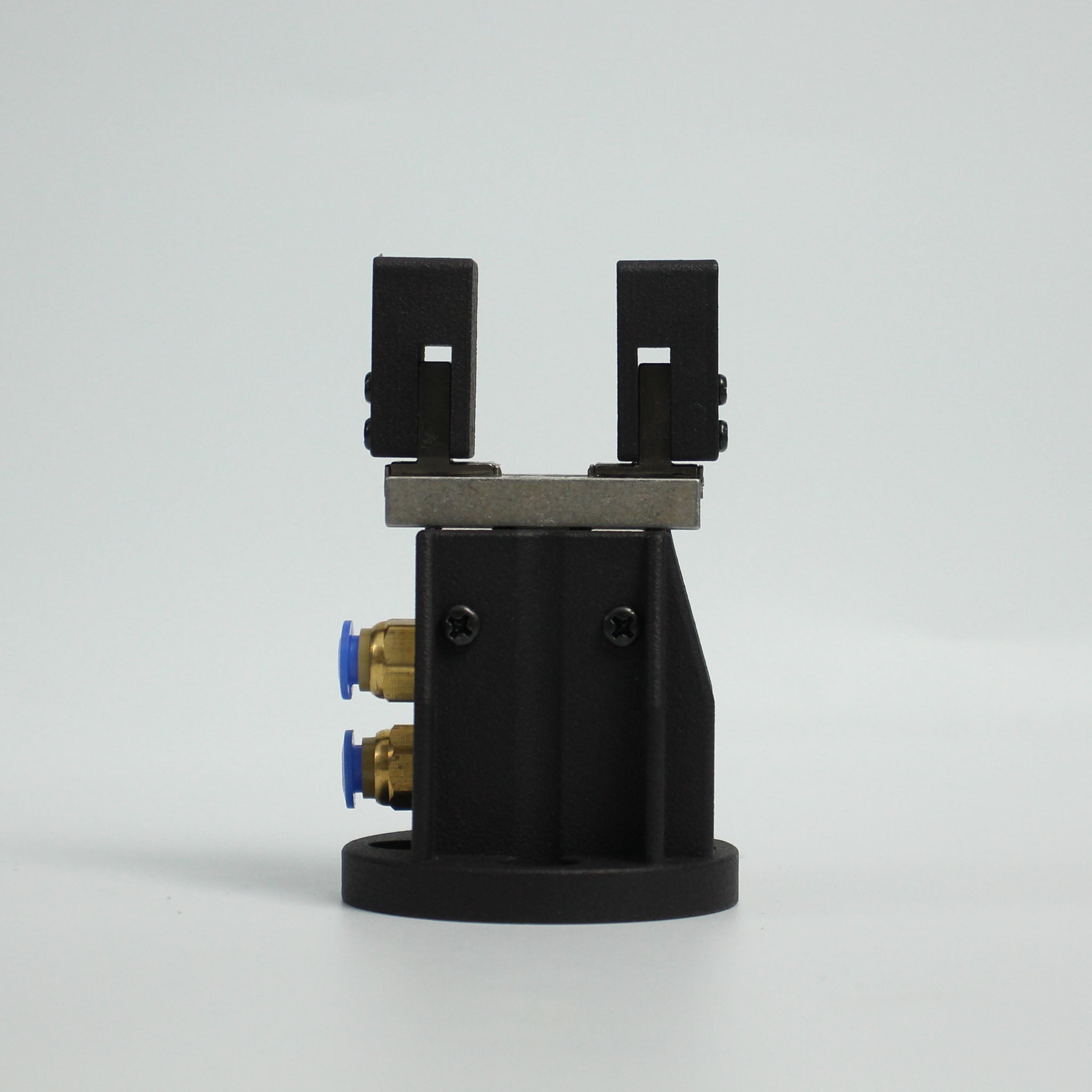

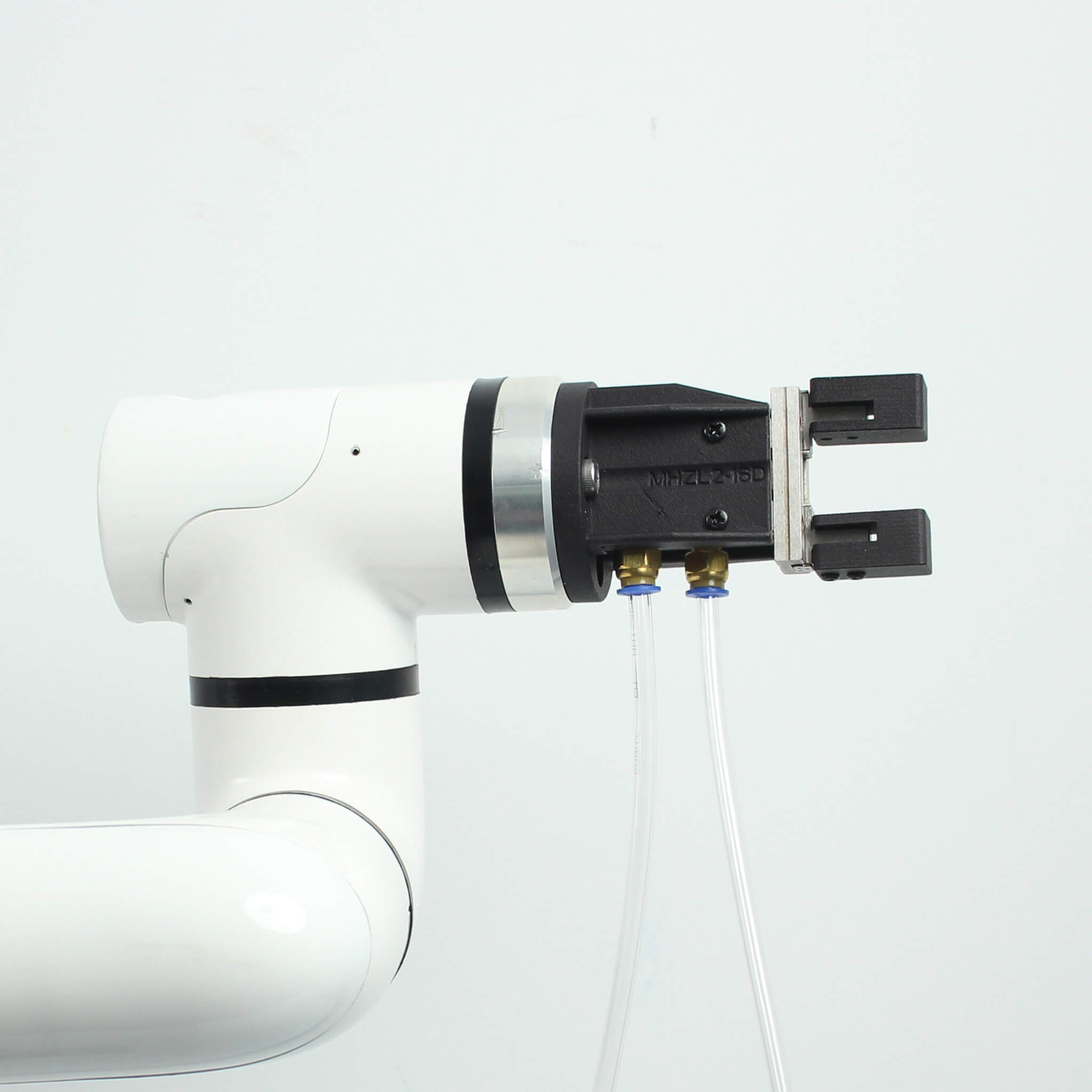

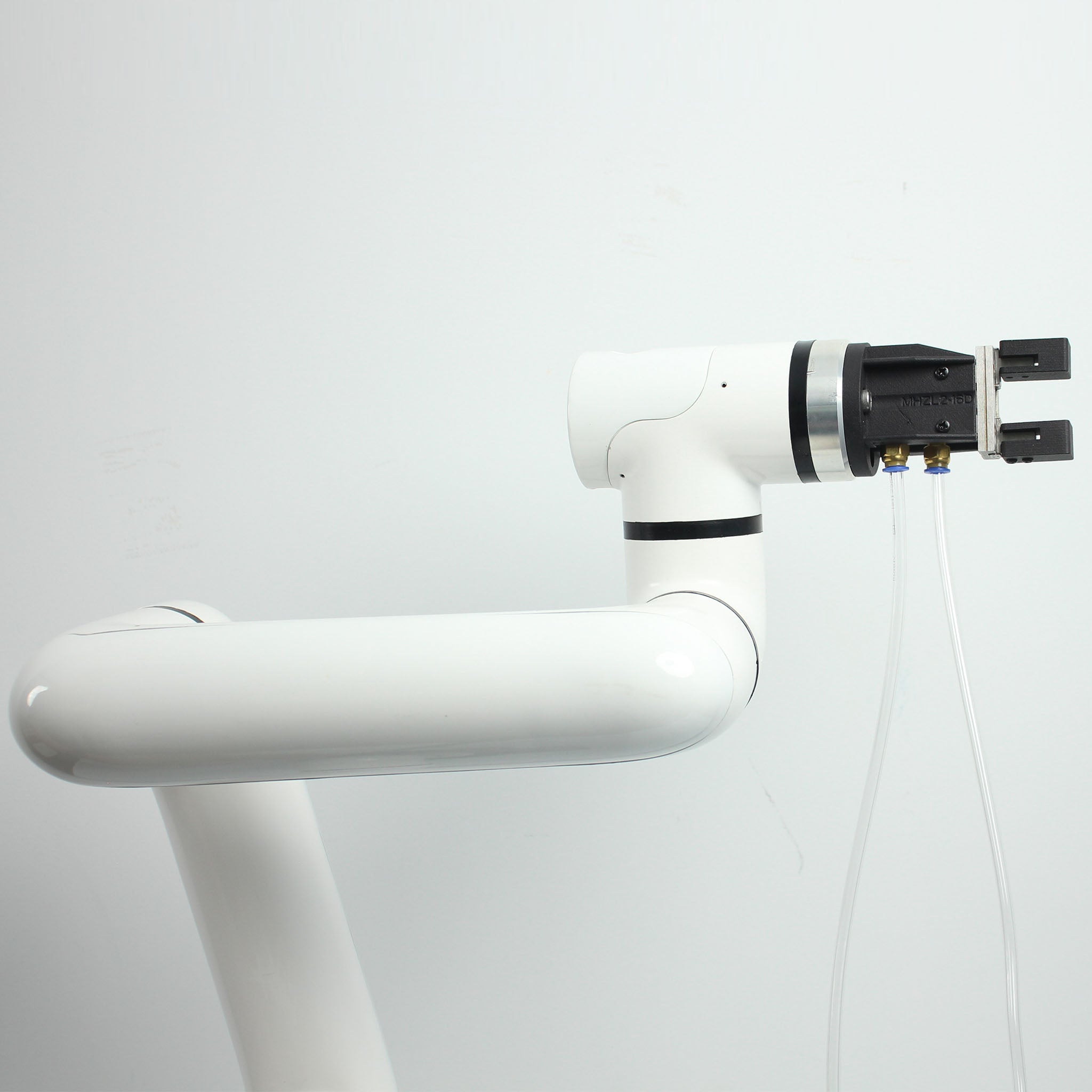

? ? myCobot Pro air parallel grippers can respond quickly and have a high grasping frequency. Fit for ER myCobot 320 2022¡¢ ER myCobot pro 600. It can be used in the fields of workpiece transfer, machine tool loading and unloading, assembly and assembly, and experimental teaching.
Features
Precise Force Control and Flexible Grip
Small Size and Saving Installation Space
Easy to Integrate, Easy to Use
Simple and Robust Robotic Hand
Full Control and Versatile Gripper

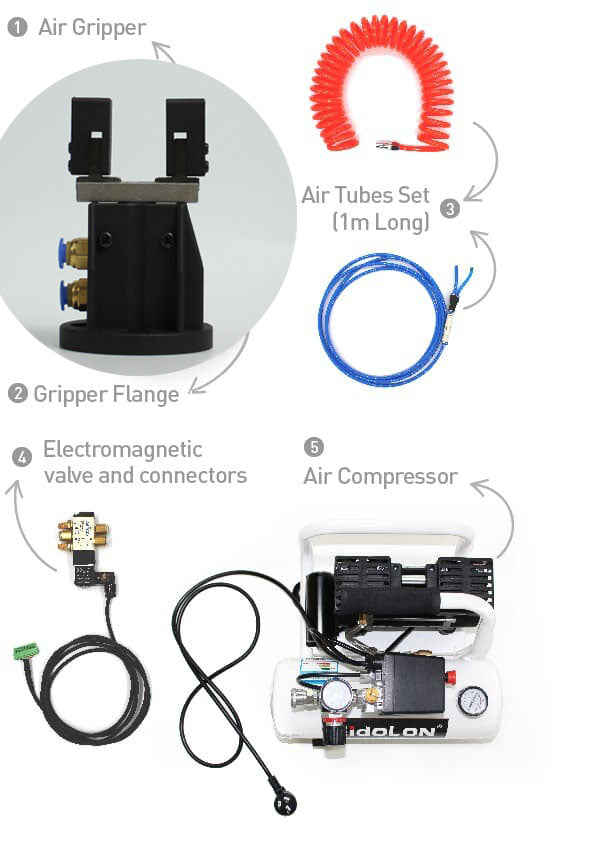

Components
- Air Gripper x1
- Gripper Flange x1
- Air Tubes Set x1 (1m Long)
- Electromagnetic valve and connectors x1

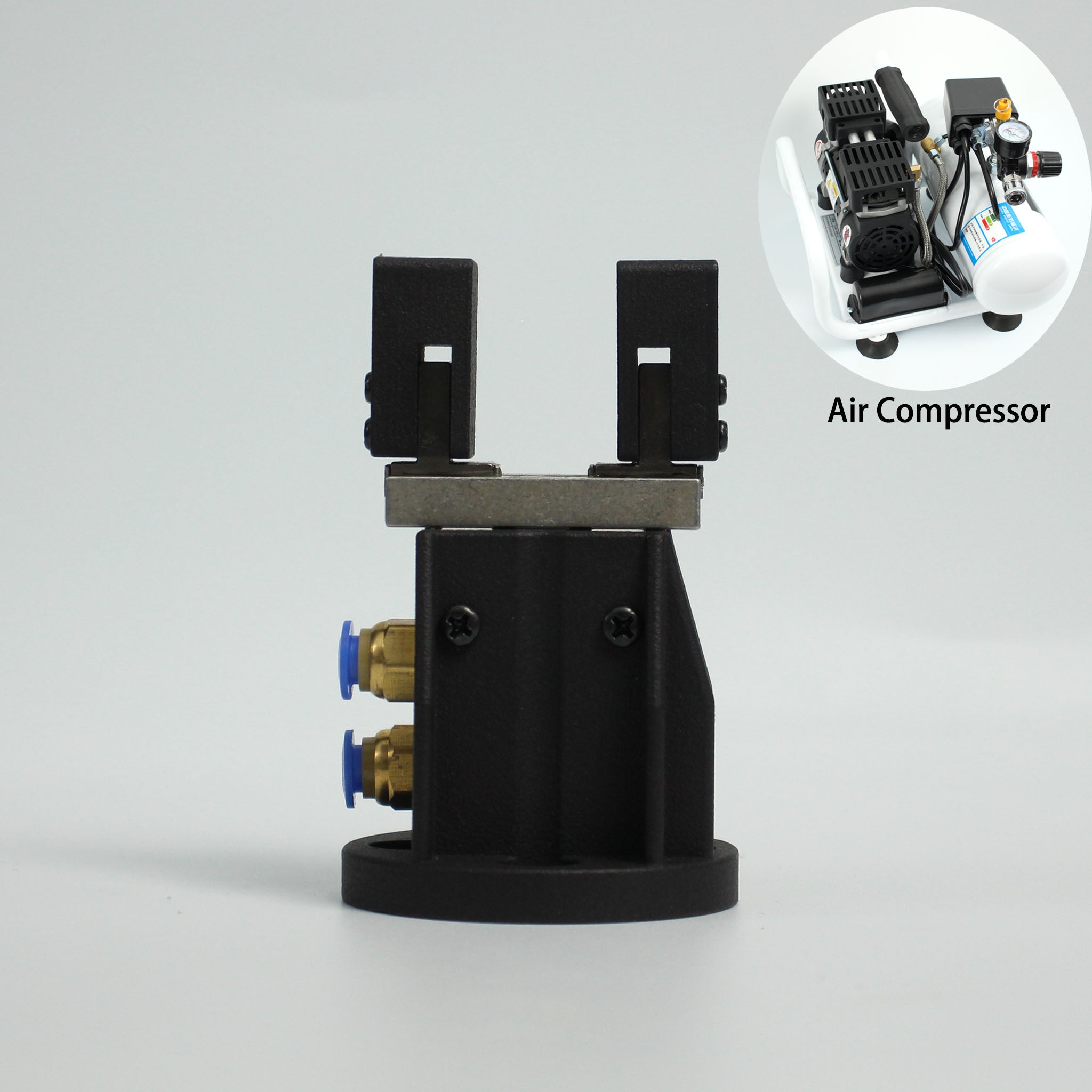

- Air Compressor x1 £¨The working voltage of the air pump is 220V/50HZ. Please identify the use environment after purchase.£©
Specifications
| Cylinder Block | 6mm | 10mm | 16mm | 20mm |
|---|---|---|---|---|
| Width of guide bearing | 5 | 7 | 9 | 12 |
| Manner of Execution | Two-way | |||
| Minimum pressure | 0.15MPa | 0.06MPa | 0.05MPa | |
| Maximum pressure | 0.7MPa | |||
| Work Environment | Without magnetic switch: £º-10~+70¡æ, With magnetic switch: -10~+60¡æ | |||
| Piston speed | 50-500mm/s | |||
| Permissible energy (J) | 0.0125 | 0.025 | 0.05 | 0.1 |
| Buffer | Rubber buffers at both ends | |||
