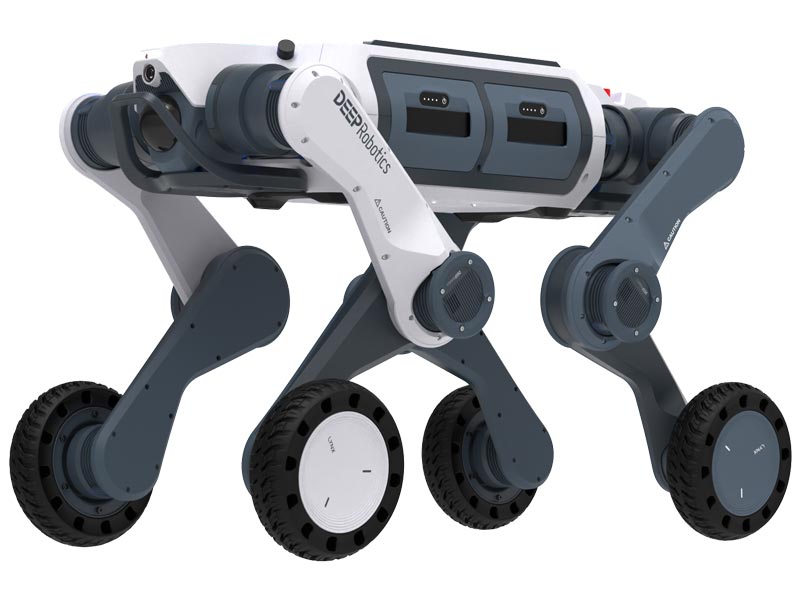

Deep Robotics - LYNX M20 Wheeled-Legged Omni-Terrain Robot
If you want to know more product information, please contact us directly.
Lighter, Faster, SmarterThe Industry-Grade Wheel-Legged Robot
The upgraded LYNX M20 fuses wheeled speed with legged agility. Its mid-size form balances narrow-space mobility (50cm clearance) and payload-endurance synergy, meeting harsh industrial demands.
Omni-Terrain MasteryAdapts to Extreme Environments

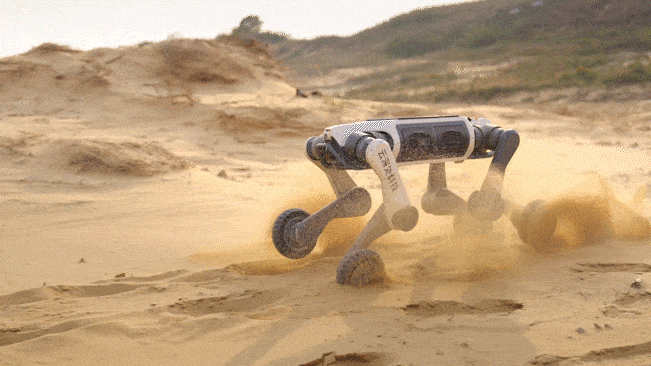

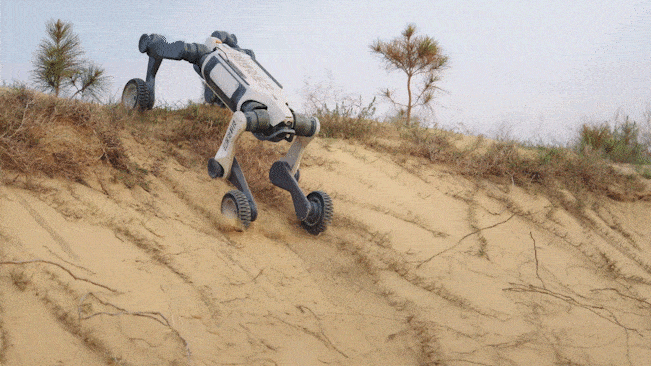

As an industrial-grade intelligent platform, LYNX M20 autonomously perceives terrain and adjusts gait. With omnidirectional obstacle avoidance, it dominates mountains, wetlands, and rubble—redefining mobility in high-risk zones.
Compact & AdaptiveExpands Application Horizons

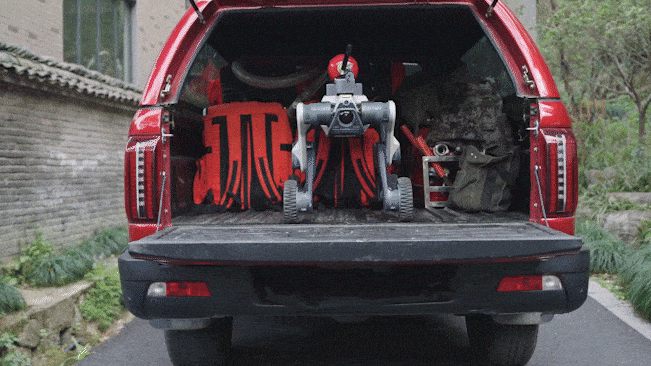

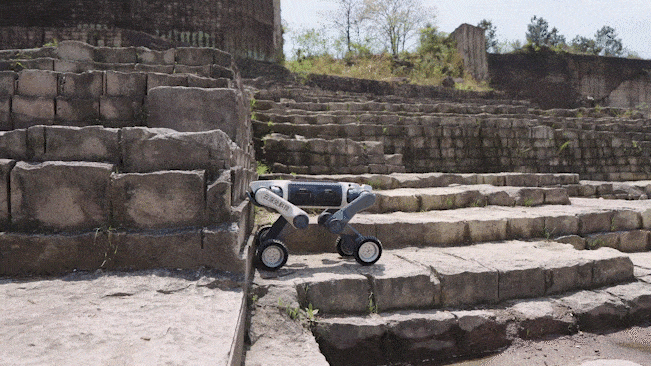

At just 33kg, it’s portable by a single operator. Featuring hyper-flexible joints and seamless leg-mode switching (e.g., "front-elbow/rear-knee"), it climbs 25cm stairs, traverses tunnels/pipelines, and bridges gaps between manual labor and heavy machinery.
Hardcore ProtectionExtreme Environment Ready
IP66-rated and operational from -20°C to 55°C. Equipped with 96-line LiDAR, bidirectional lighting for darkness, and hot-swappable batteries. Engineered for high-risk, it’s your failsafe partner.
High-Performance ConfigurationsFor Diverse Demands

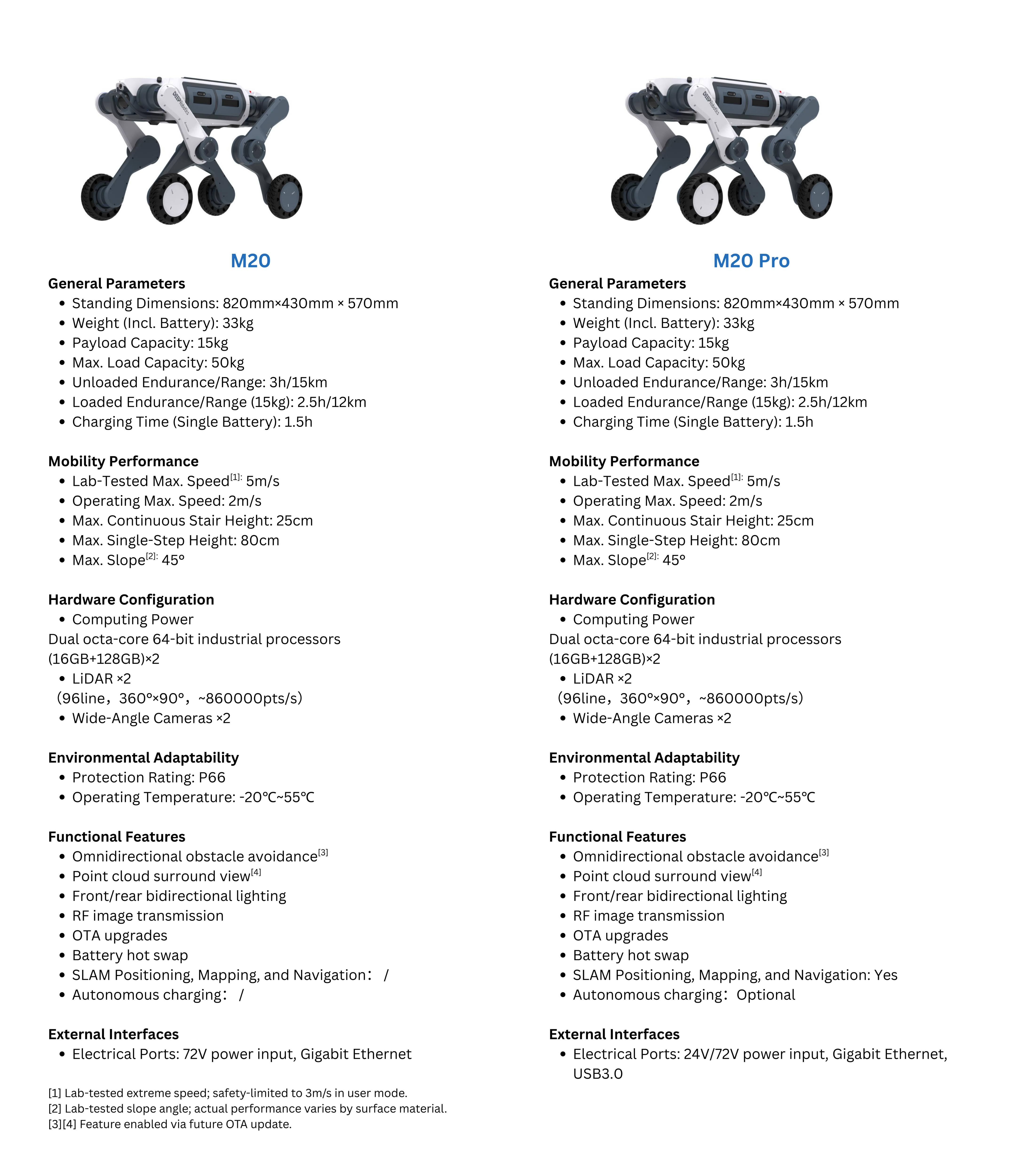

LYNX M20 delivers 15kg payload capacity, 2.5h loaded runtime, and 80cm obstacle clearance. Equipped with a 96-line LiDAR (360°×90° FOV), it enables auto navigation with omnidirectional obstacle avoidance, while optional self-charging and modular expansion empower versatile mission capabilities.
