Livox Mid-360 LiDAR
Livox Mid-360
Technical Specifications
Compact 360-degree LiDAR with high-density point-cloud output, a built-in IMU and an IP67-rated enclosure.
LiDAR Performance
Model
Livox Mid-360
Laser wavelength
905 nm
Laser safety
Class 1, IEC 60825-1:2014 eye-safe
Detection range
40 m at 10% reflectivity
70 m at 80% reflectivity
Measured under 100 klx illumination
Close-proximity blind zone
0.1 m
Field of view
Horizontal: 360°
Vertical: −7° to 52°
Range precision, 1σ
≤2 cm at 10 m
≤3 cm at 0.2 m
Angular precision, 1σ
<0.15°
Point rate
200,000 points per second, first return
Frame rate
10 Hz typical
False-alarm rate
<0.01% under 100 klx illumination
Anti-interference function
Available
Connectivity and Synchronization
Data port
100BASE-TX Ethernet
Data synchronization
IEEE 1588-2008 PTPv2 and GPS
Integrated IMU
ICM-40609
Electrical and Environmental
Power consumption
6.5 W average
Up to 14 W during automatic self-heating
Supply voltage
9–27 V DC
Operating temperature
−4°F to 131°F / −20°C to 55°C
Ingress protection
IP67
Physical Specifications
Dimensions
65 × 65 × 60 mm
Weight
265 g
Package

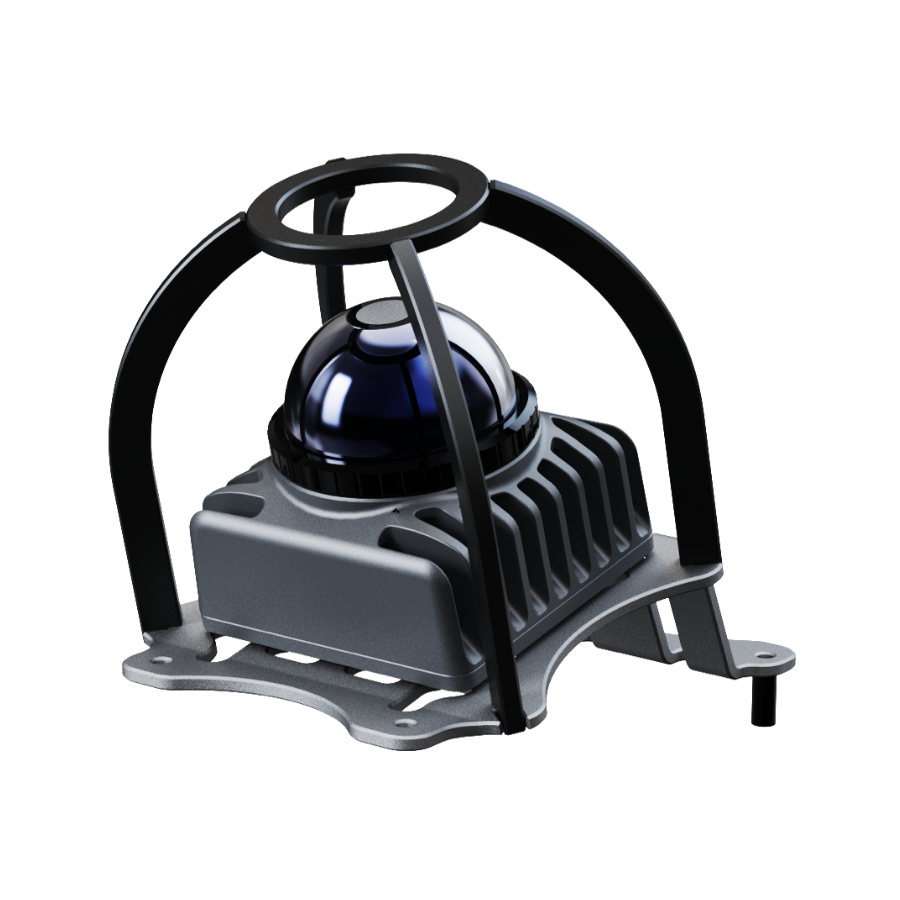

Protective Stand
Includes a metal protective mounting stand.
Customized Cable
Includes a customized connection cable.
Specifications are provided for reference and may vary depending on operating temperature, target reflectivity, environmental conditions and system configuration.
