Elephant Robotics myArm C650: Universal 6 DOF Robot Motion Information Collection Device
If you want to know more product information such as edu version, please contact us directly.

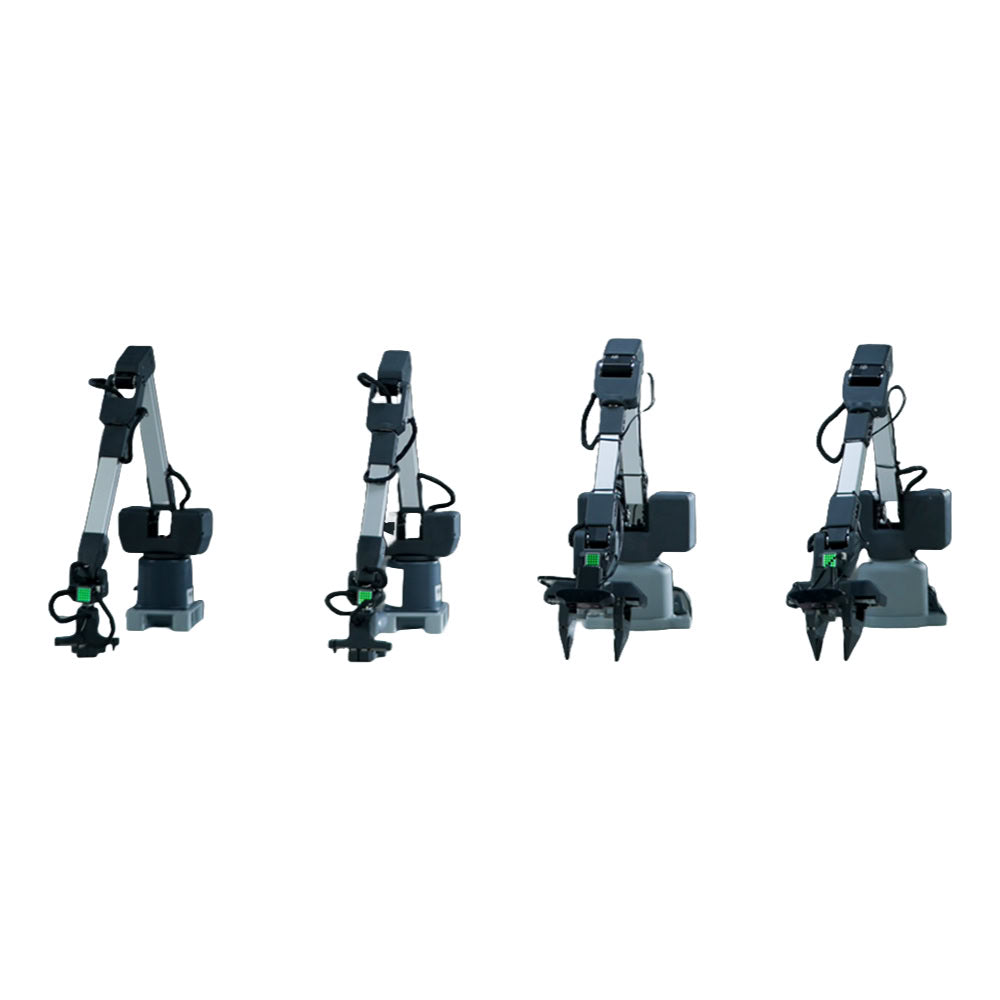

myArm M & C: Robot Arm & Teach Pendant

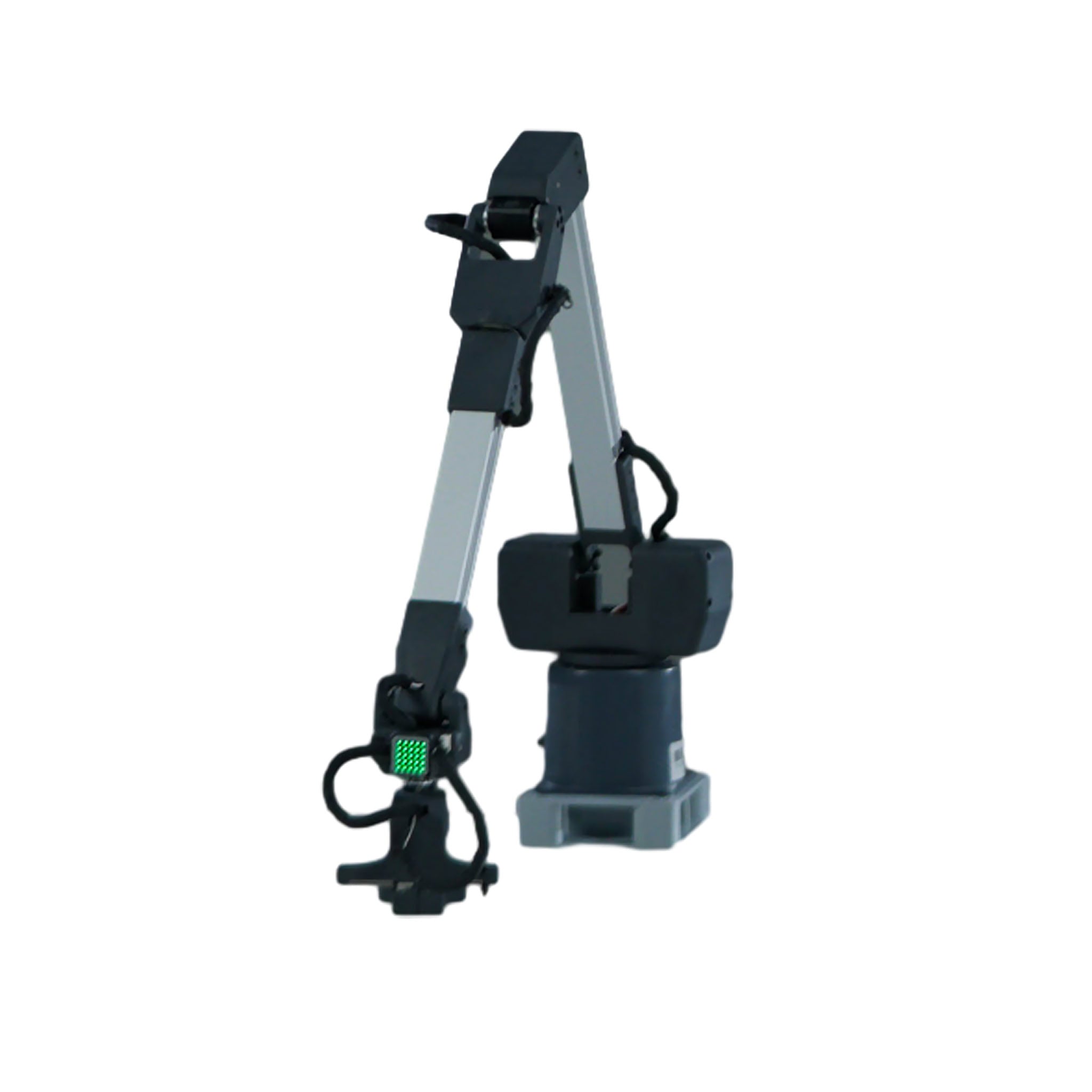

The myArm C650 is a universal 6 DOF robot motion information acquisition device equipped with fingertip controllers and 2 smart buttons. The "C" stands for Controller. It can output endpoint coordinates or joint angles at 50Hz. Designed for education, research, and industrial data collection, its flexibility and highly modular design make it suitable for various complex operations and tasks. It can be expanded into a 7 DOF data collector.
e.g. Teaching Tool (remote control of conventional configuration robots, complex configuration robots, heavy-duty robots, and other types of equipment), Robotics Education Tool (validate robot kinematics algorithms).
Multi-Sensor & Enhanced Control
Equipped with sensors that track real-time motion data (position, speed, etc.), the robot arm also identifies anomalies to ensure safe operation. Additionally, its 6+1-axis design mimics human arm flexibility for versatile multi-angle and multi-directional control.
Handles Diverse Tasks
The 750mm arm length is ideal for reaching objects, while the 500g rated load and 1000g maximum load allow it to handle common household items. myArm M750 can fold clothes, sort books, brew coffee, and more.
Universal Control Hub

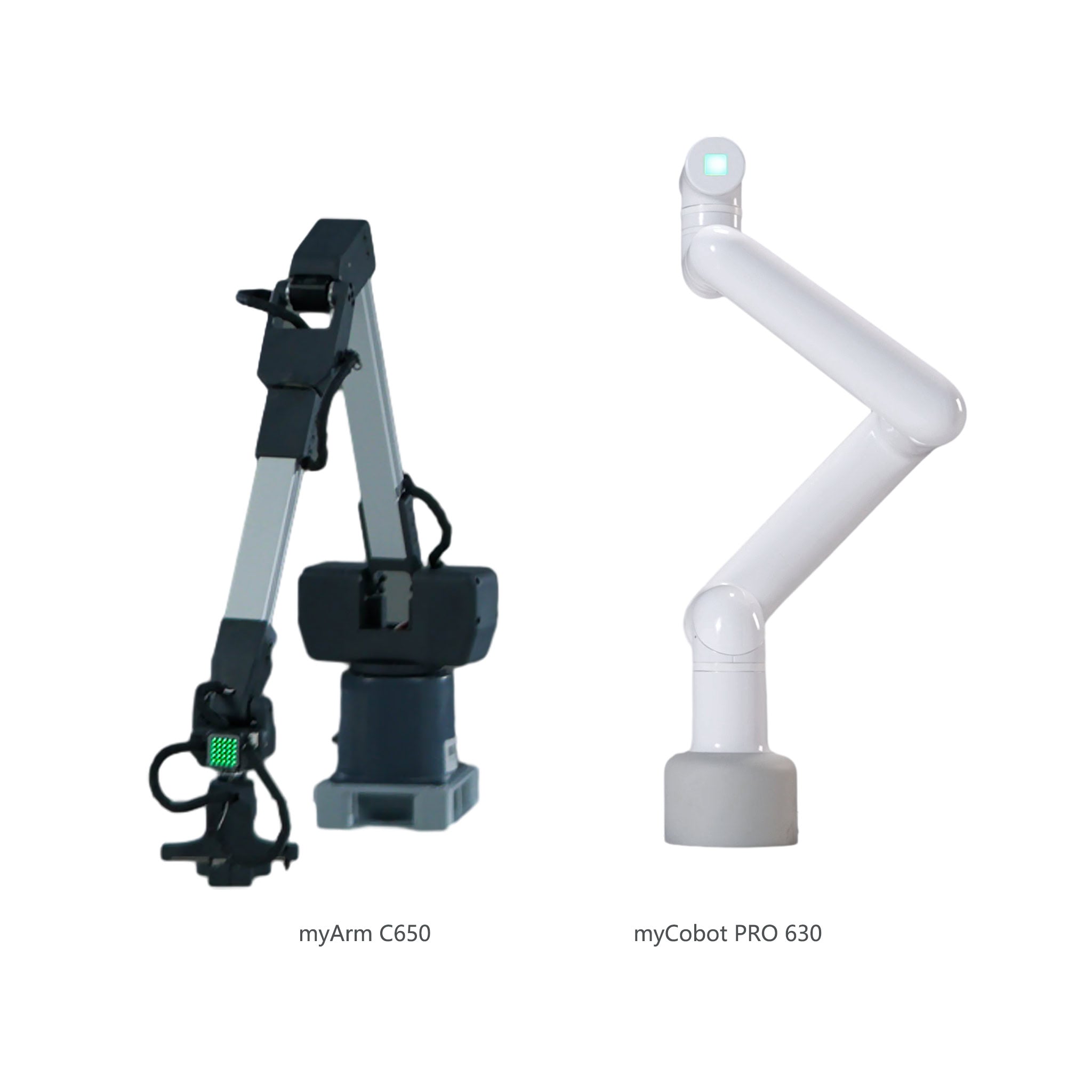

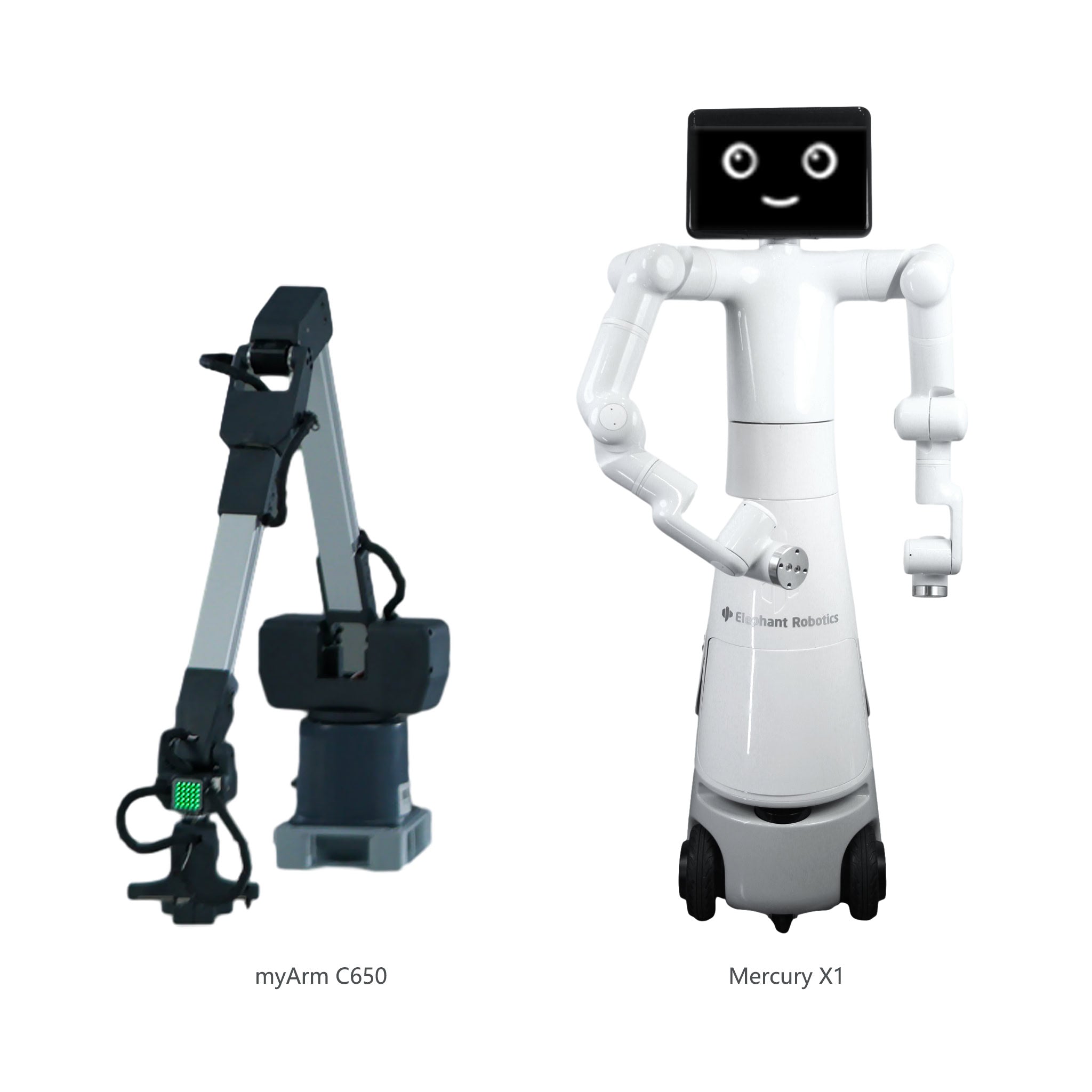

The myArm C650 seamlessly controls various machines, including the myArm M750, myCobot 630 (with its full harmonic motor) & Mercury X1 (with dual-arm cooperation). Its capabilities are vast, opening doors to endless possibilities.
Programming & Development
The myArm series robots are highly valuable in the fields of education and research, particularly within the widely used development environments of Python and ROS (Robot Operating System). These environments provide robust support, enabling the myArm series robots to be extensively utilized in machine learning, artificial intelligence research, complex motion control, and visual processing tasks.
Essential Functions

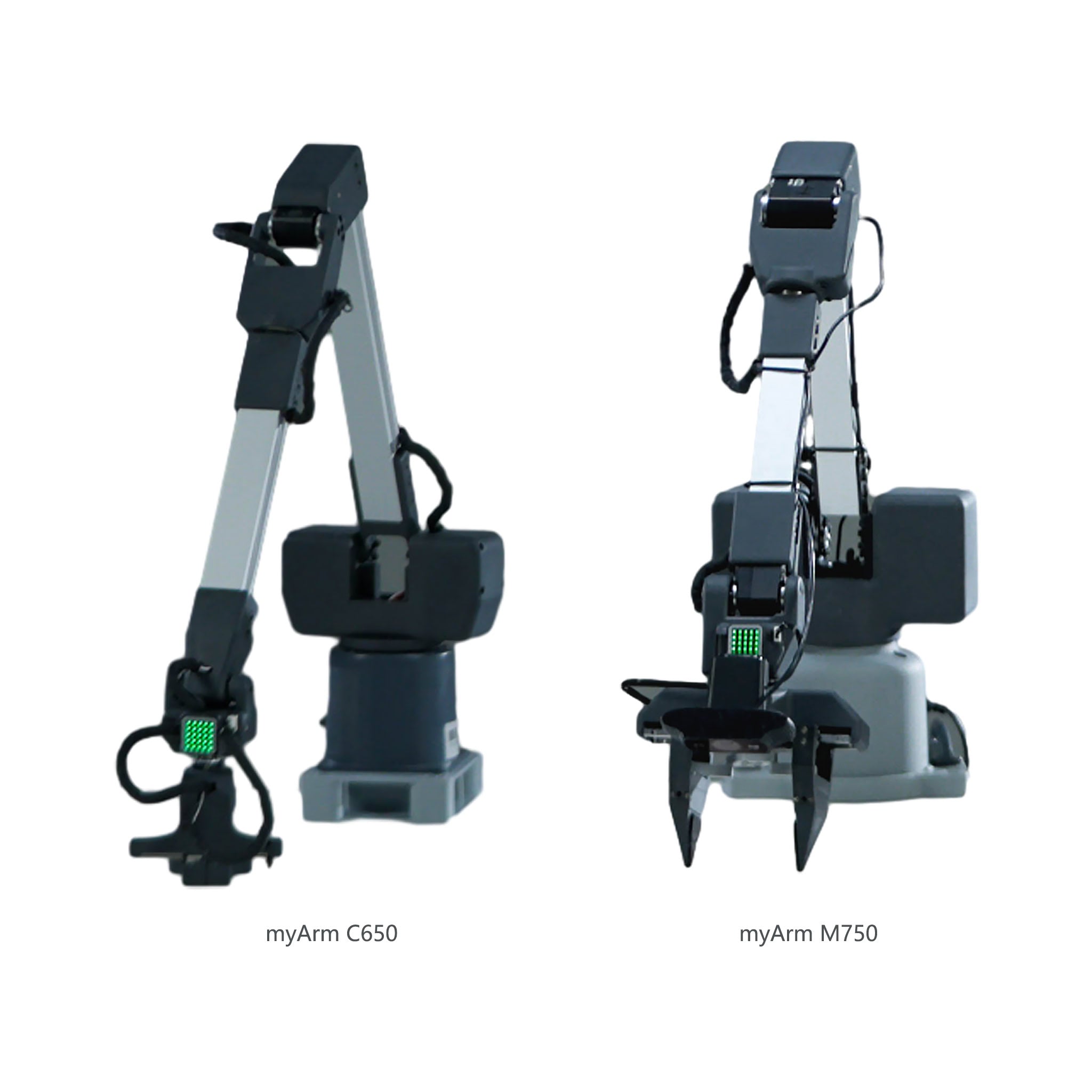

What's Difference
| Specification | myArm C650 | myArm M750 |
|---|---|---|
| Degree of Freedom | 6+1 | 6+1 |
| Payload | - | 500g |
| Working Load | - | 500g Load Capacity, 1000g Maximum Load |
| Working Radius | 650mm | 750mm |
| Total Span | 1300mm | 1500mm |
| Positioning Accuracy | ¡À1mm | ¡À1mm |
| Accuracy | 5 ¨C 8mm | 5 ¨C 8mm |
| Weight | 1.95kg | 4.5kg |
| Number of Steering Gears | 8 | 8 |
| Steering Gear Type | High precision digital servo motor | Industrial grade high-precision digital servo motor |
| Power Specifications | 12V5A | 24V9.2A |
| Joint Maximum Rotation | +/- 180¡ã | +/- 180¡ã |
| End Effector | Dual-finger touch control + dual-button operation | Parallel gripper compatible with optional camera |
| USB Connection | Type-C | Type-C |
| Atom Tip | 5x5 LED matrix | 5x5 LED matrix |
| Communication Frame Rate | >50Hz | >50Hz |
| Programming | Python + ROS | Python + ROS |
What's Included
| myArm C650 | myArm C650 X1 |
|---|---|
| USB Data Cable X1 | |
| 12V 5A Power Adapter X1 | |
| myArm M750 | myArm M750 X1 |
| USB Data Cable X1 | |
| 24V 5A Power Adapter X1 | |
| J6 Joint Lego Interface Adapter X1 | |
| Mercury X1 | myArm C650 X2 |
| Mercury X1 Humanoid Robot X1 | |
| Product Manual X1 | |
| 24V 5A Power Adapter X1 | |
| Screw Kit X1 | |
| myCobot Pro 630 | myCobot Pro 630 Robotic Arm X1 |
| myArm M750 X1 | |
| 48V Power Adapter X1 | |
| Mounting Base Plate X1 | |
| Emergency Stop Switch X1 | |
| Fixed Base Plate G-clamp X2 | |
| M8 Air Plug Cable X1 | |
| 24V 5A Power Adapter X1 | |
| Back Head M6 Screws X8 | |
| M5 Wrench X1 | |
| M2 WrenchX1 | |
| 8Pin Plug-in Terminal Block X2 | |
| 4Pin Plug-in Terminal Block X1 |
Essential Accessories
Buy MyArm-Master-M750
It automates precise operations within a 750mm workspace and handles objects up to 500g.
Unbeatable Value

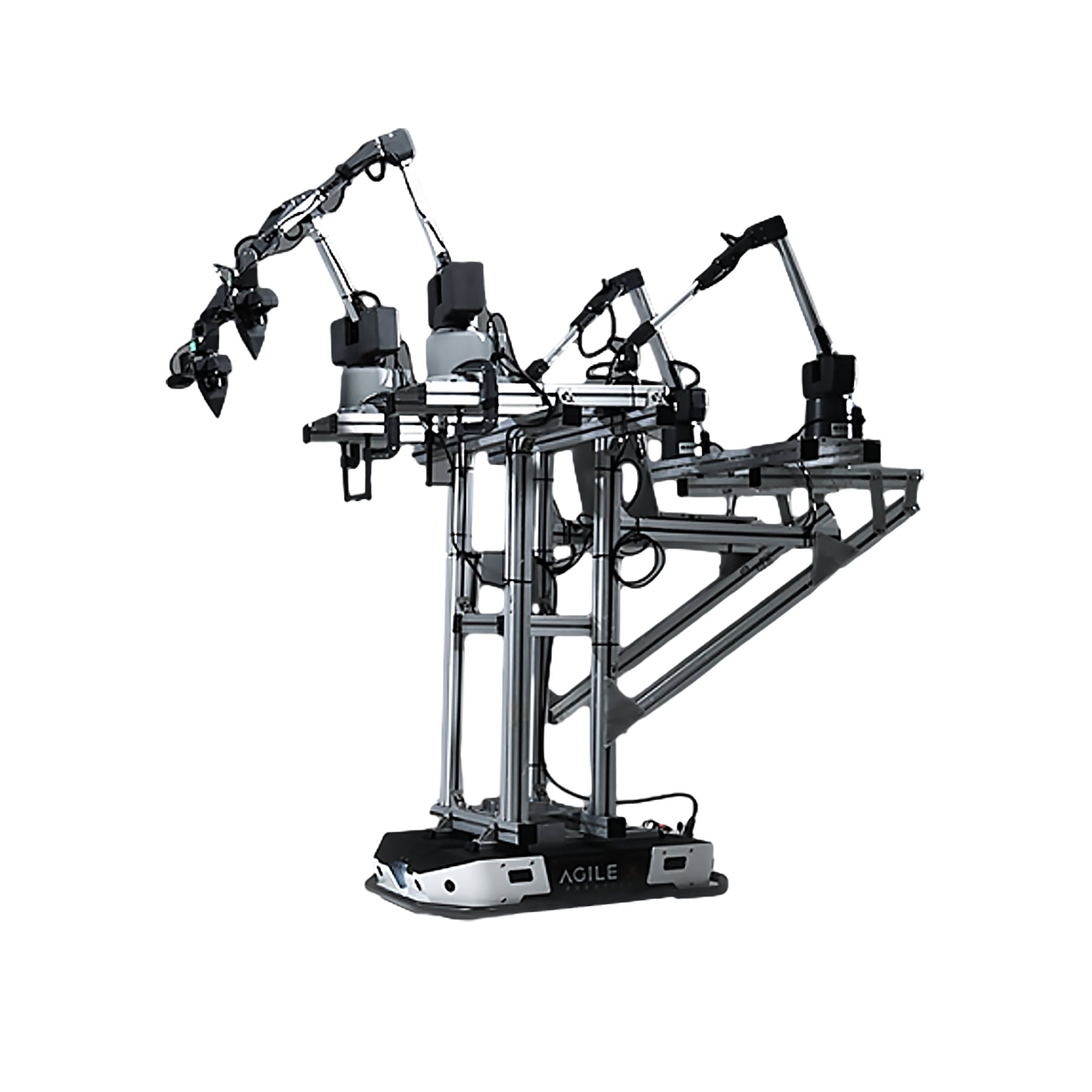

myArm M&C Embodied Humanoid Robot Compound Kit
