myCobot Pro Vacuum Suction Cups & Air Compressor
Materials:with Air Compressor
Free Shipping! If you want to know more product information such as edu version, please contact us directly.

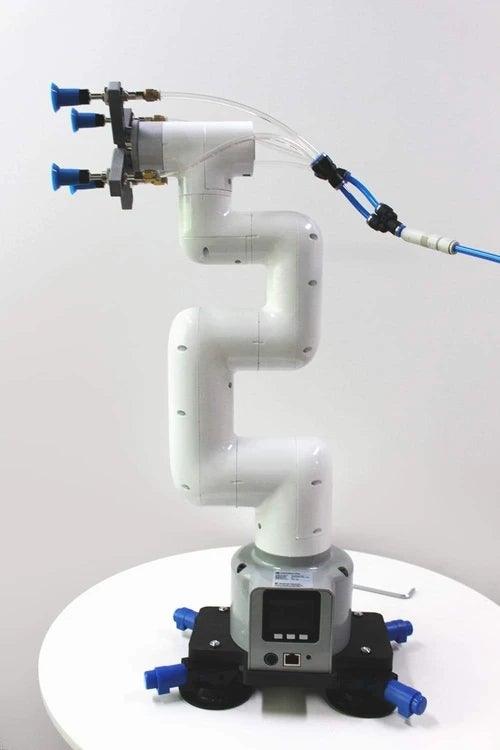

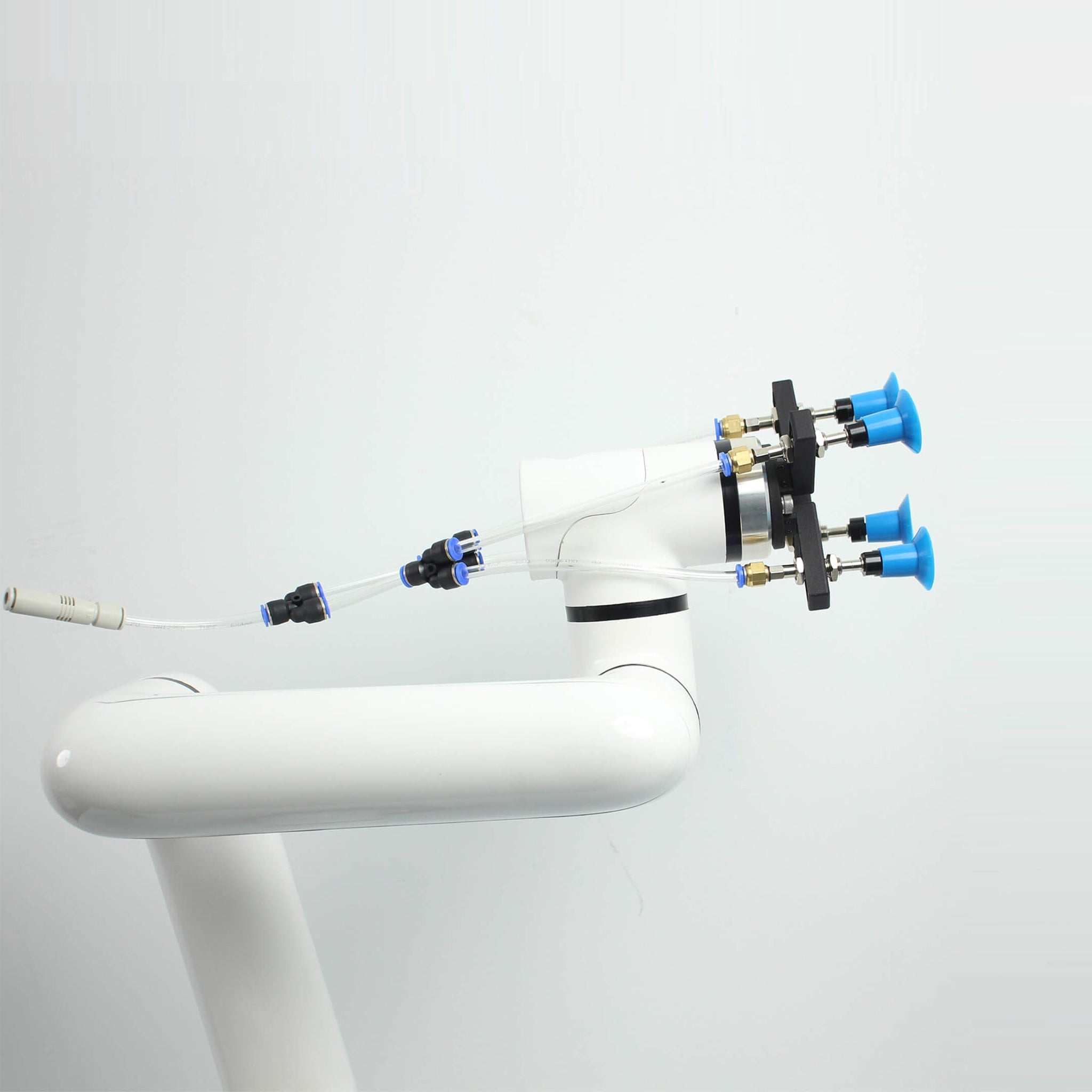

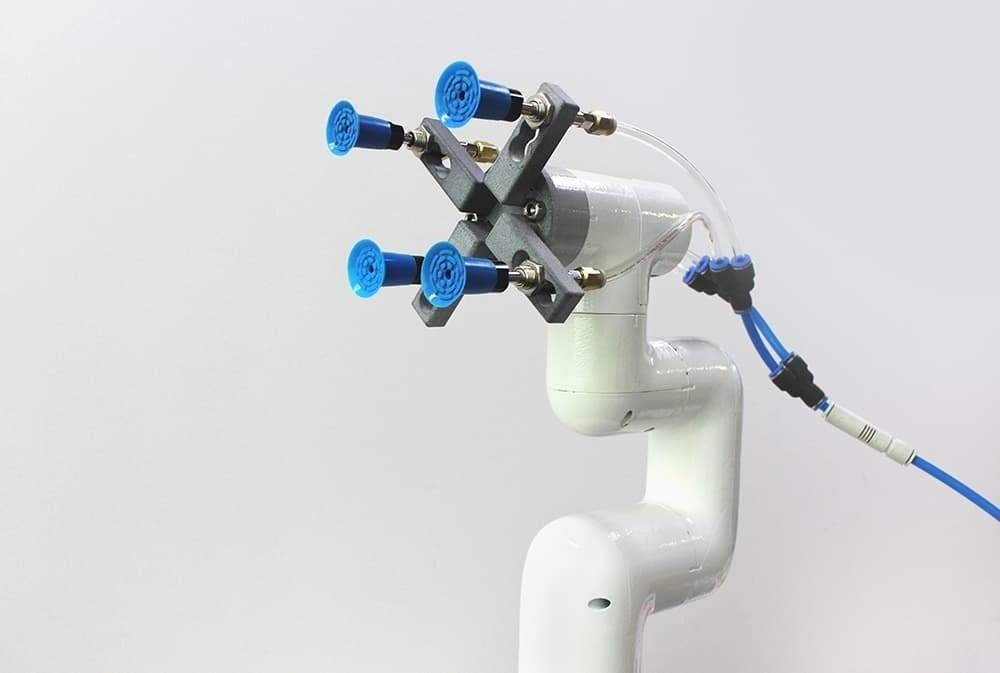

myCobot Pro vacuum suction cups are very efficient for fast and reliable pick and place and allow you to pick some objects that a normal gripper can¡¯t pick. Such as taking out the cover of a flat box, moving soda cans from the top, picking and placing large objects with a flat surface.(Fit for ER my Cobot 320 M5 Stack, ER myCobot 320 Pi , ER myCobot Pro 360
Features
Easy to Use
Strong Suction
Full Control and Versatile
Small Size and Saving Installation Space
Simple and Robust Robotic Vacuum Suction

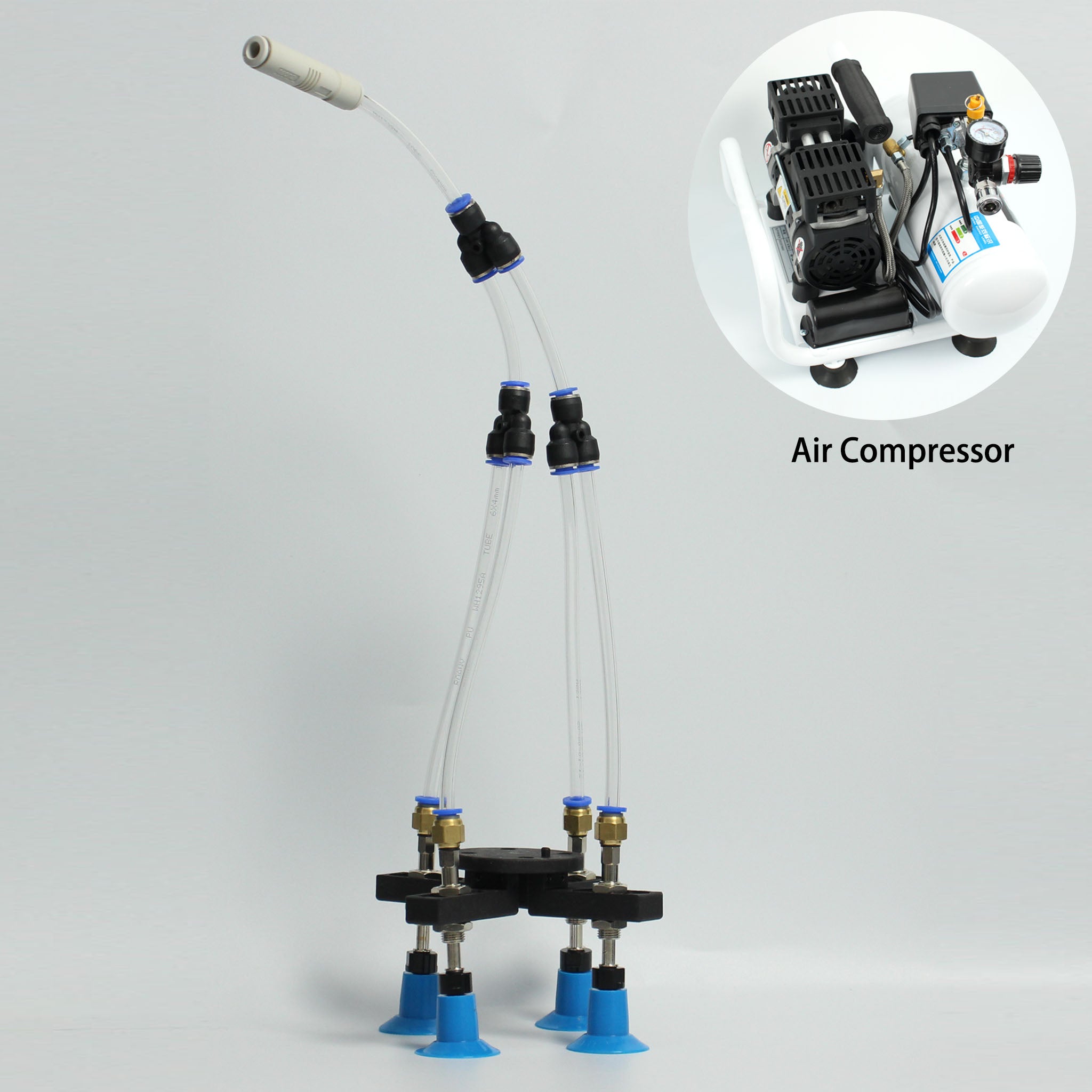

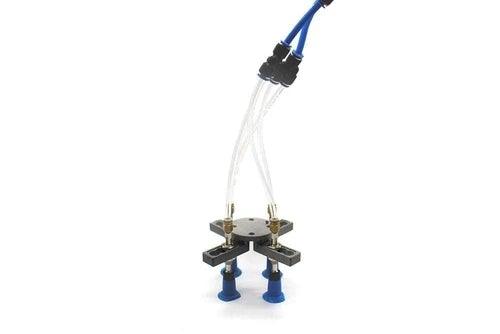

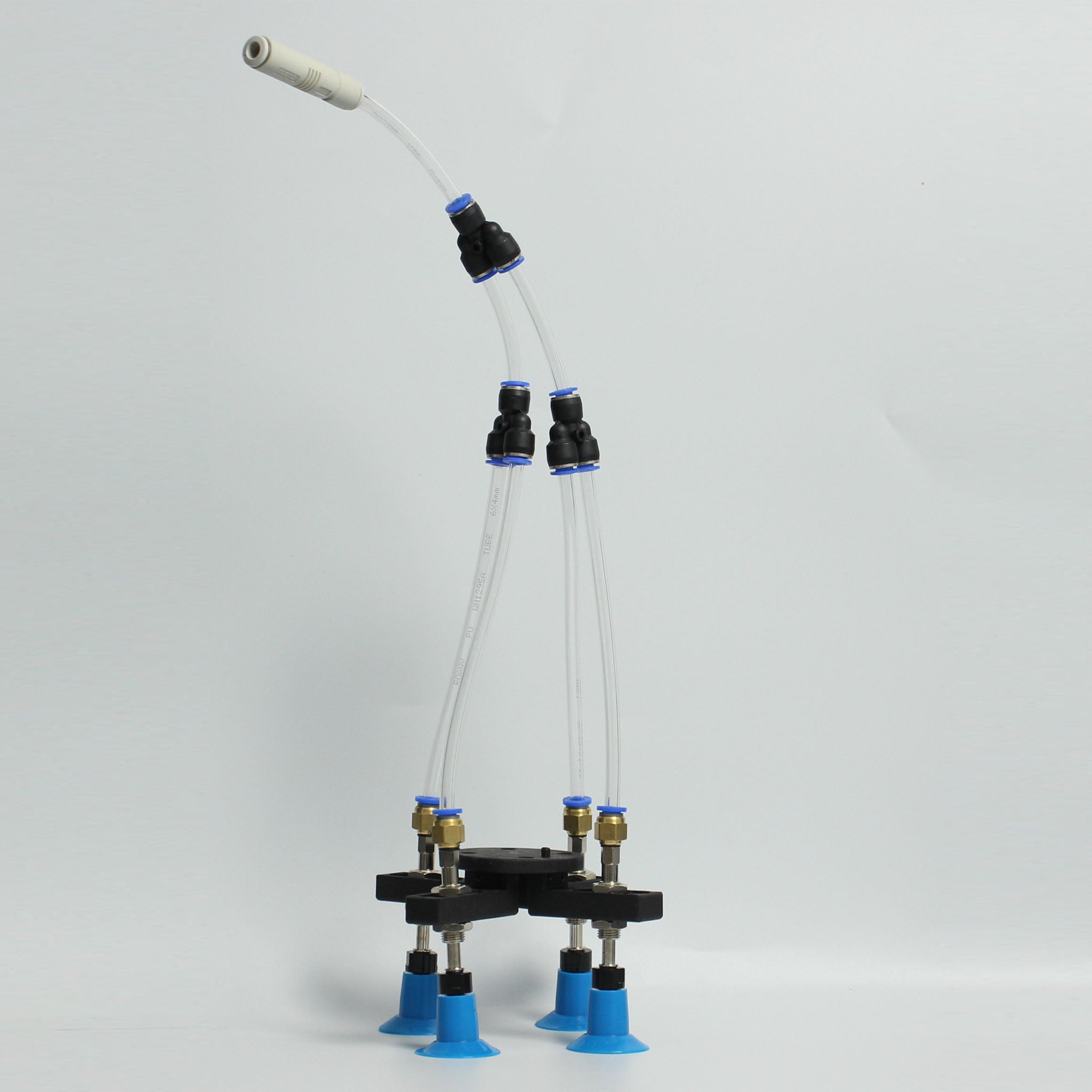

Components

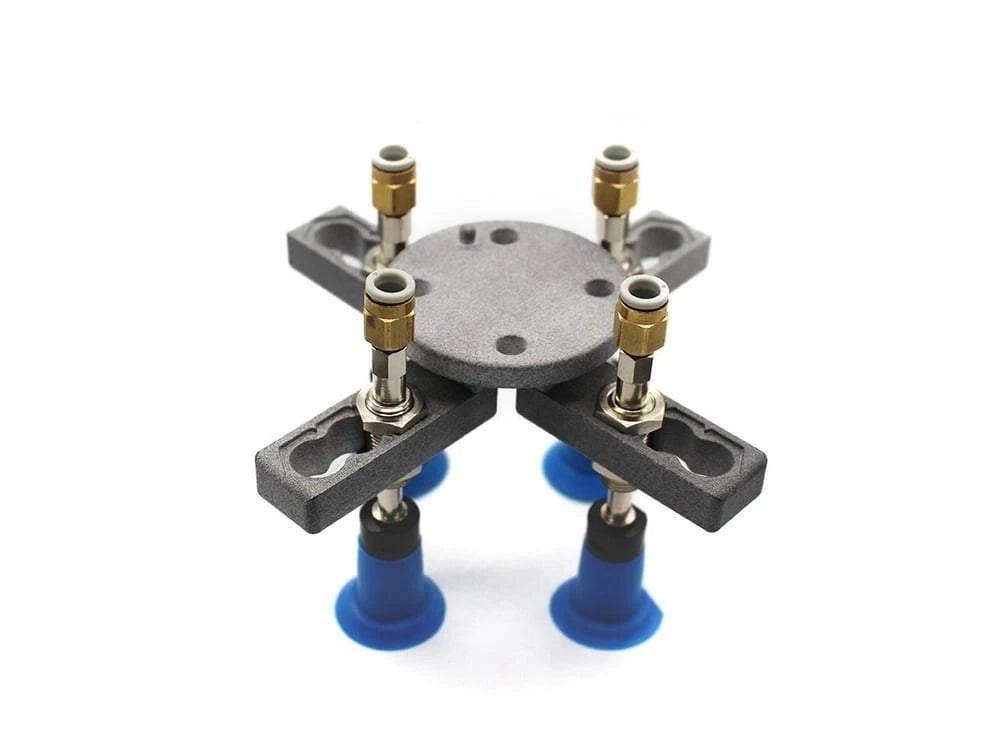

- Center Flange x1
- Spring links x4
- L Holder x4
- Cups x4
- Air Tubes Set x1 (1m Long)
- Electromagnetic valve and connectors x1
- Air Compressor x1 £¨The working voltage of the air pump is 220V/50HZ. Please identify the use environment after purchase.
Specifications
| Specification | Parameter |
|---|---|
| Power rating | 370W |
| Pressure | 0.8mpa |
| Rotate speed | 1400R/Min |
| Voltage | 220V/50Hz |
| Air displacement | 49L/Min |
| Maximum adsorptible weight | 1kg |
| Available suction numbers | 1/2/4 |
| Weight of air pump | 10kg |
| Weight of suction | >300g |
